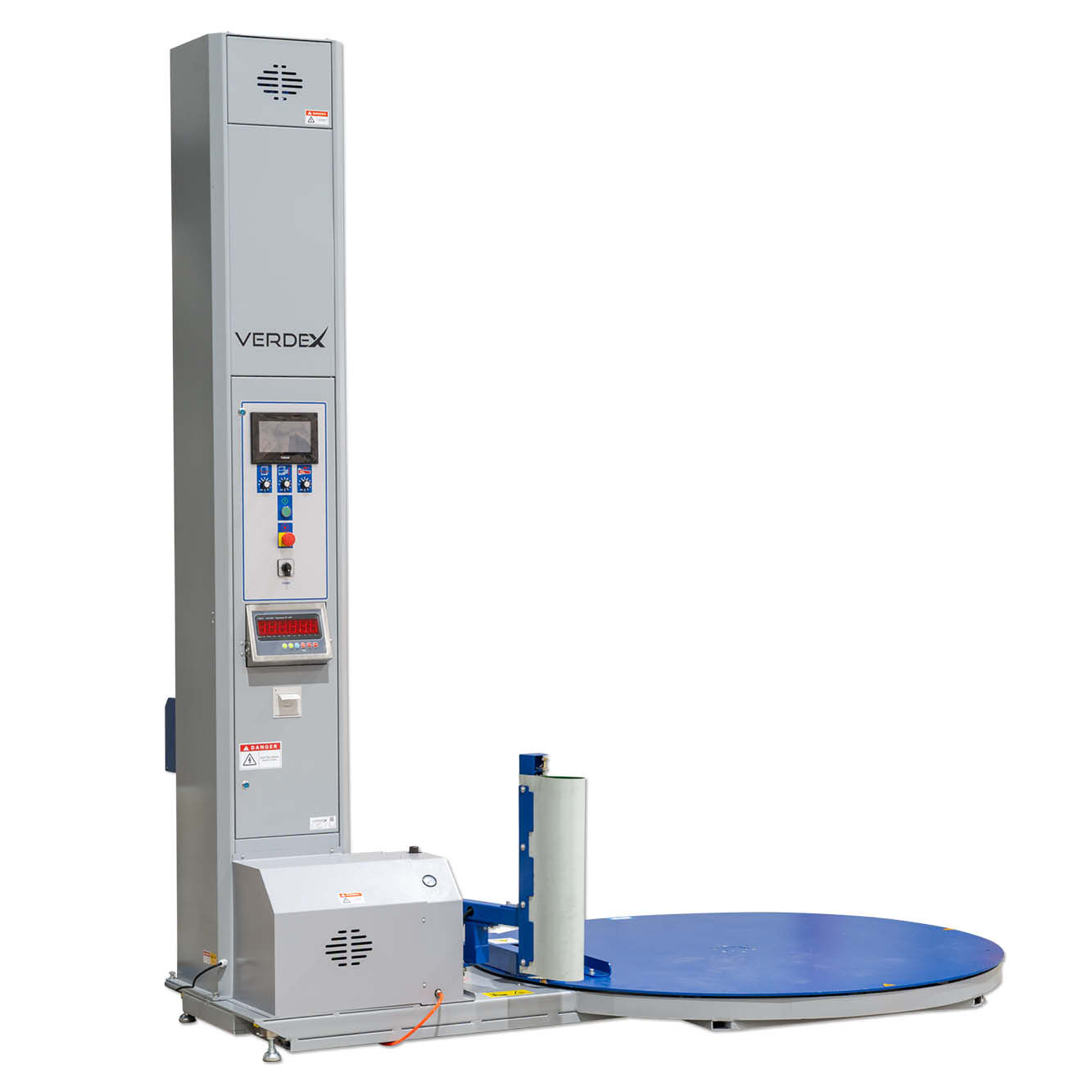

Fully-Auto Stretch Wrapping Machine

Optimise your pallet wrapping workflow with the Fully-Auto Stretch Wrapping Machine, designed for reliable, high-performance operation. Equipped with advanced controls, built-in weighing capabilities, and versatile operating modes, it delivers consistent results across demanding industrial applications.

• Automatically attach & cut film
• PLC control+key board control
• Features an electronic weighing scale with 4 x gravity sensors installed at each corner of the turntable
• Digital display scale unit with a weighing accuracy of ±0.05kg
• Scale unit printer
• 6 operating modes: 5 x automatic modes & 1 x manual mode
• Supplied with a ramp as standard
• Inverter speed control
• Slow start & stop
• Stop at home position
• Auto detect pallet height
• Front & rear forklift access
• Variable turntable & film carriage speed
• Configurable shrink wrap setting for top, middle & bottom of pallet – 5 memory settings available
• Package weight capacity: 50-1500kg
• Power: 220V, 50HZ, 1.2kw (Pre-stretch film carriage)
• Lift motor: 0.25kW
• Pre-stretch motor: 0.25kW
• Turntable motor: 0.75kW, Speed 0-10 RPM
• Requires compressed air, air pressure: 0.6MPa
• Turntable Diameter: 1500mm
• Max height of package: 2100mm
• Maximum film diameter: 250mm
• Inner diameter of film: 76mm
• Unit Weight: 550kg
