Description

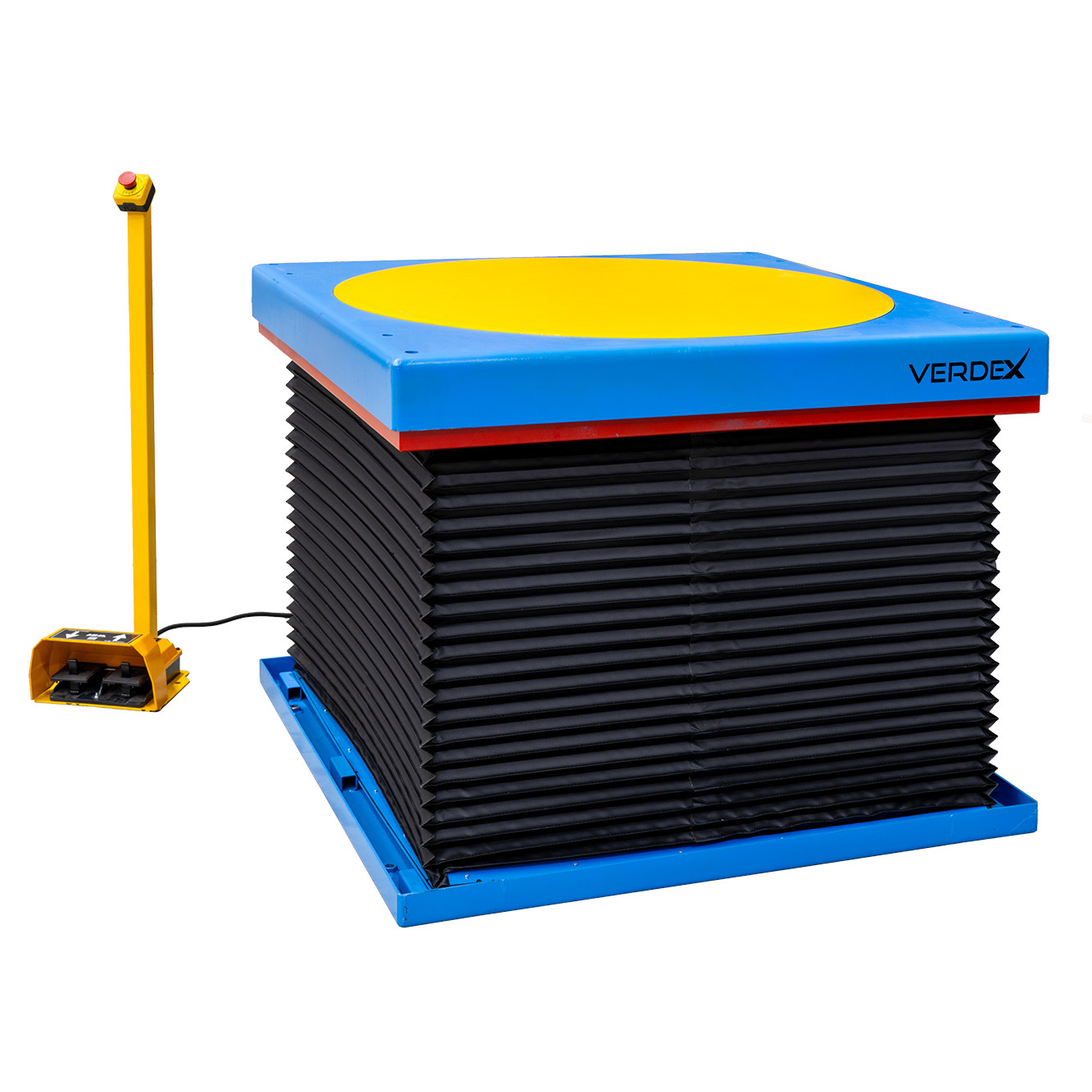

- These lift tables can be applied in many work places to increase productivity and safety.
- Loads can be elevated or lowered to optimum heights at the push of a button.
- Heavy duty design and construction
- High quality European power packs
- Suitable for on floor applications or in-floor pit applications
- Self lubricating bushings on pivot points
- Removable lifting eyes to facilitate installation and maintenance
- Platform fitted with safety bar preventing descent on contact with obstructions
- 3 phase power supply (unit supplied with 2.4 metre long lead for connection into the electrical supply)
- Low volt (24v) control box with up-down buttons with E-Stop provided with pendant priced separately.
- Internal power pack equipped with relief valve to prevent overloading
- Compensated flow valve for controlled lowering speed
- Heavy duty cylinders with drainage system and check valve to stop lowering in case of hose burst
- Designed to be used with Powered Pallet Trucks and LLOP
- Capacity: 1250kg
- Table Size: 1200 x 1200mm
- Min Height: 250mm
- Max Height: 950mm
- Stroke Height: 700mm
- Raise Time: 18 Seconds
- Unit Weight: 400kg
- Pendant Control Cable Length: 6mtrs
- Lift Table Colour: (blue)
- Integrated Manual Turntable (yellow)
- Turntable Diameter: 1100mm
- Turntable Rotation locked when in lowered position
- Armour protection on all hydraulic hoses
- Overload protection valves to ensure only specified maximum weight is lifted
- IP54 rating on Electrical and Hydraulic systems
- Mechanical props for safe and secure maintenance
- Chromed, honed and air tested hydraulic cylinders
- All cylinders tested to 30% overload
- Sealed for life maintenance free bearings
- Warranty: One Year
- Minimum Pit Size: 1250x1250x260
- Verdex Max is a high performance lift table with over 10,000 units in operation globally
- Compliant to AS1418
- Lift table will work in temperatures down to minus 5 degrees
